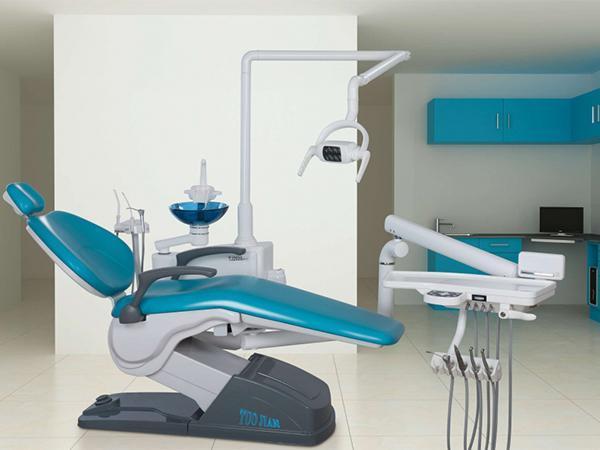

TJ2688A1-1 Dental Treatment Unit

Technical Parameters
Voltage: 110V 60Hz or 220V 50Hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa
Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 136x112x93cm
Gross weight: 210kg
Net weight: 200kg

Standard configuration

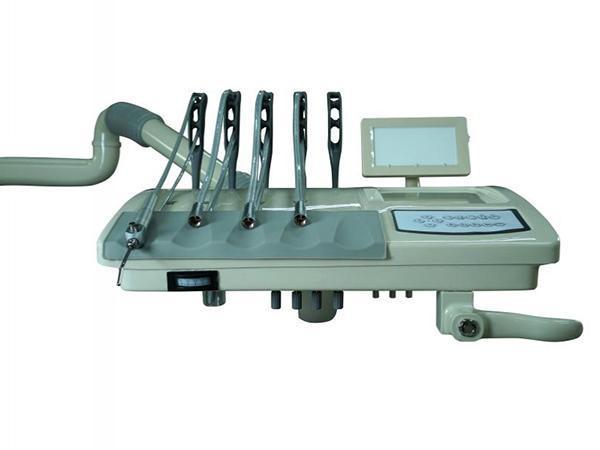

Top-mounted instrument tray(bottom-mounted instrument tray is optional)
All the pipelines inside the instrument tray adopt acid and alkali resistant water pipes and air pipes, and the normal service life of the instrument can be 3 years.
With 5 fixed instrument holders, it can meet various surgical needs of the dentist.
The handpiece rack of the instrument tray designed with a balanced sense, height and inclination suitable for setting instruments, can make sure the dentist conveniently replace tools during dental surgery.
The instrument tray is of 40×70mm area, in order to maximize the room for dentist to place surgical supplies and tools.

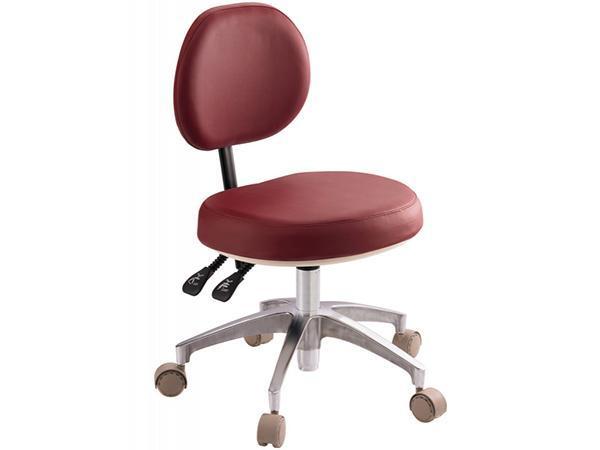

Chair for the dentist (1 set)
The surface material is leather, in order to keep the dentist from sliding down during operation. The chair can rotate 360 degrees, so it is convenient for the dentist to get instruments or clean tools. With 5 stable casters and backrests, the chair can guarantee the dentist keep upright in the course of treatment.


Adjustable pillow
The adjustable pillow makes it easy for the patients to move their head.
Adopt ergonomic design to ensure the patients stay comfortable during the treatment.

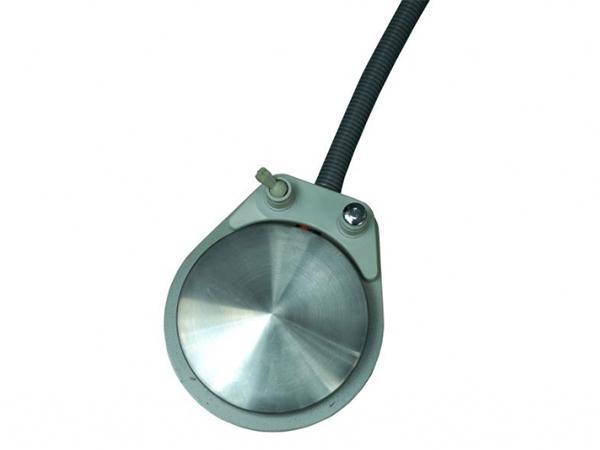

Simple foot switch (1 set)
The dentist can adjust the patient' chair through the simple foot switch, at the same time his hand is free so that he can focus on the treatment.
Besides, it is more hygienic to prevent the dentist from touching the button.
The button of the foot switch is of reasonable area. It will be hard to operate with if too small, and much space will be wasted if too large.


Automatic thermostatic water supply system
The system ensure the patients a more comfortable experience without cold water stimulation.

Handpiece tubing with standard fittings (3 sets)
It is used to place unused handpiece during operation, in case the handpiece should be arbitrarily put on table and get polluted.

Three way syringe (one for hot water, one for cold water)
Stainless steel nozzle with high temperature and high pressure disinfection is detachable, and the water in the three way syringe can also be filtered to ensure safety and non-pollution.

Water suction and saliva ejector (one is strong, one is weak)
The strong and weak water suction and saliva ejector is used under different conditions, which can remove the saliva produced by the patient in the treatment and make it convenient for consequent operation.
It is lightweight(less than 200g) and portable.

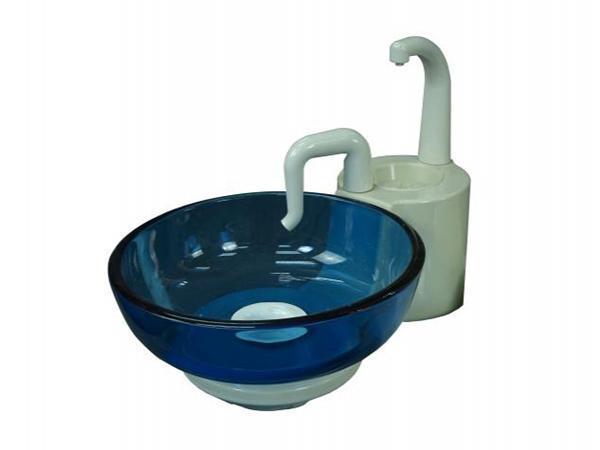

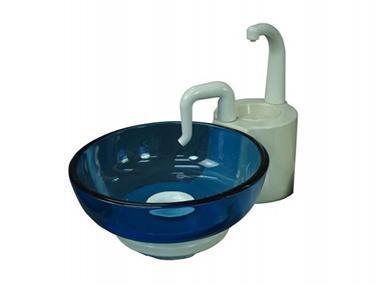

Spittoon
The spittoon made of ceramic material, with smooth surface, is easy to clean. The blood and oil stains can be quickly removed and disinfection could be done.
The spittoon can rotate 180 degrees, easy for the patient to use directly in the chair without having to get up, and for the dentist to clean the instruments timely.


Built-in water purified system with bottle
High temperature disinfection, safe and sterile.

Strong and weak dual-purpose LED cold lamp (1 set)
There are strong light and weak lights adapting to different treatment environment. The LED lamp produces less heat but has wide range of lighting that the whole dental equipment could be lightened.

Low-tension X-film viewer (1 set)
The low-tension X-film viewer' working voltage is 24V. It uses energy-saving LED light source and has a long service life.


Optional configuration

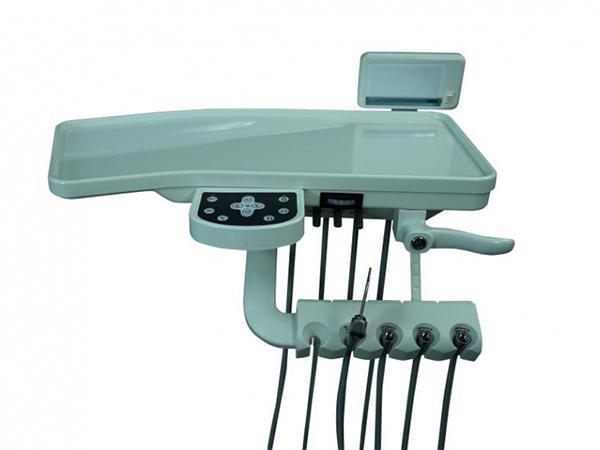

Bottom-mounted instrument tray (1 set)

The dentist can choose top-mounted or bottom-mounted instrument tray on their own operation habits.

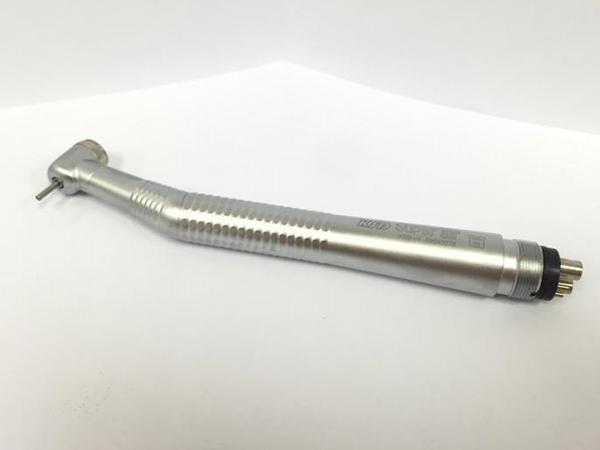

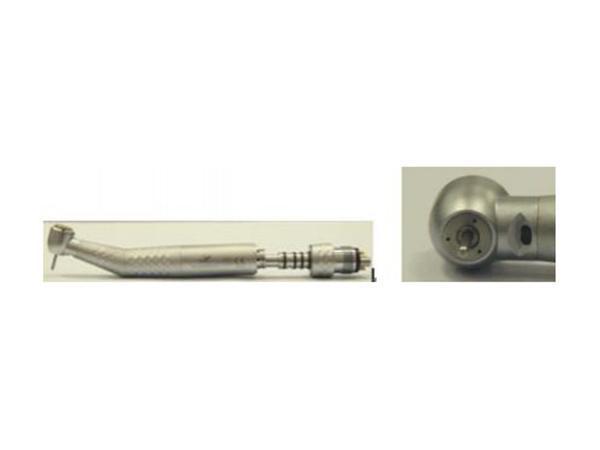

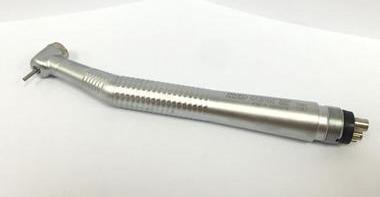

High-speed air driven handpieces( 2 sets)

It is easy to hold the handpiece as its body adopts humanized grip design, and its surface is with corrosion resistance.
Stable operation, high-speed rotation without vibration.

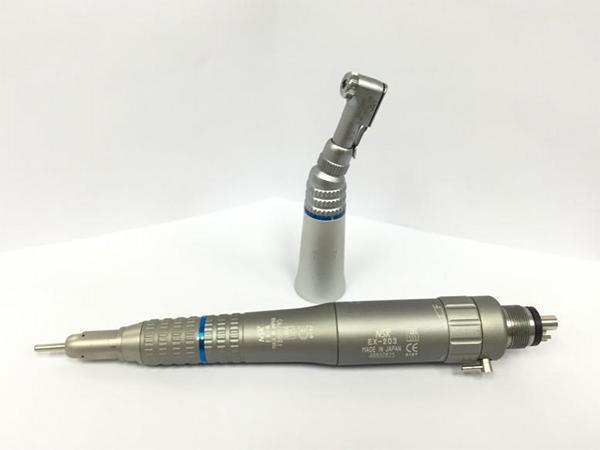

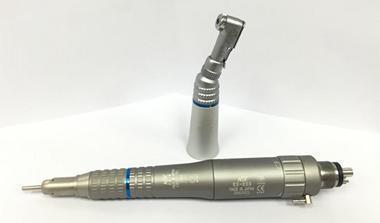

Low speed air motor handpiece (1 set)

Made of stainless steel, easy for cleaning and maintenance.

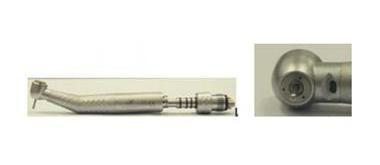

Fiber optic high speed turbine handpiece (2 sets)
Designed with water spray, the fiber optic high speed turbine handpiece can reduce the high temperature generated in the treatment in time, and improve the work efficiency.
With high temperature and high pressure resistance, it will not be deformed due to high temperature or high pressure.
Stable body and low noise.

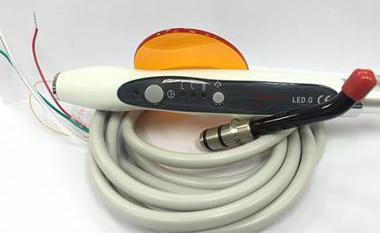

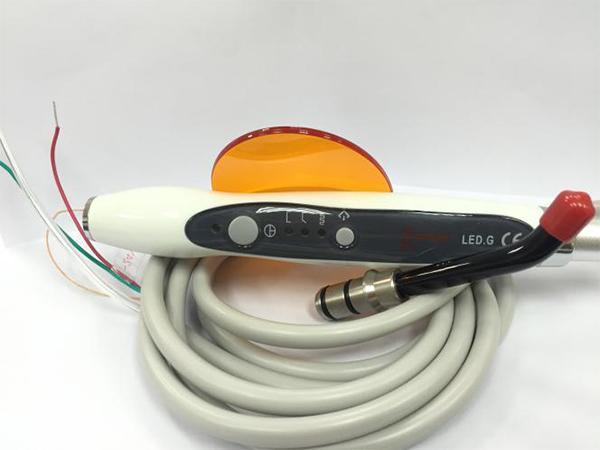

Built-in LED curing light (1 set)

The LED curing light is a dental device for repairing teeth, to fill the tooth cavity or bond the alveolus.

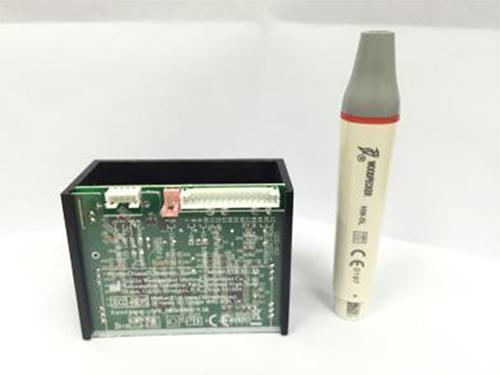

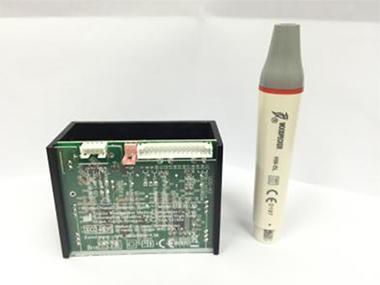

Built-in ultrasonic scaler (1 set)
The ultrasonic scaler can not only remove plaque, tartar and stains and other dirt on the tooth surface to make teeth white, but also effectively prevent such oral diseases as bad breath, root bleeding, periodontal disease and dental caries. Besides, the built-in design makes sure the instrument will not be contaminated.


Endoscope equipment (1 set)
The endoscope equipment can help the patients understand their own conditions and treatment effect, make it convenient to communicate with the dentist.

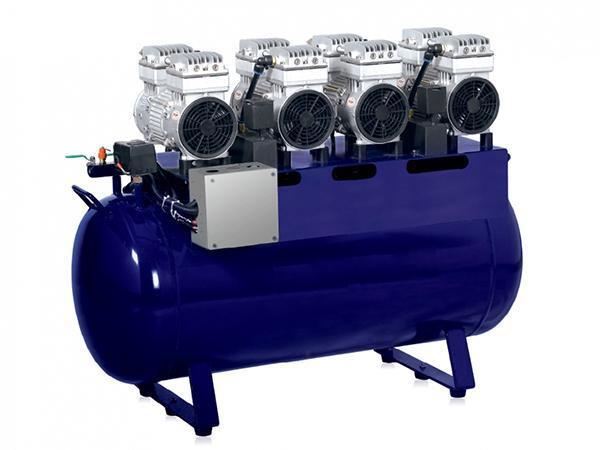

Oil free dental vacuum pump (1 set)
The vacuum pump is made of aluminum alloy in order to reduce its weight. Our company supplies the vacuum pump suitable for one to eight dental chairs.
