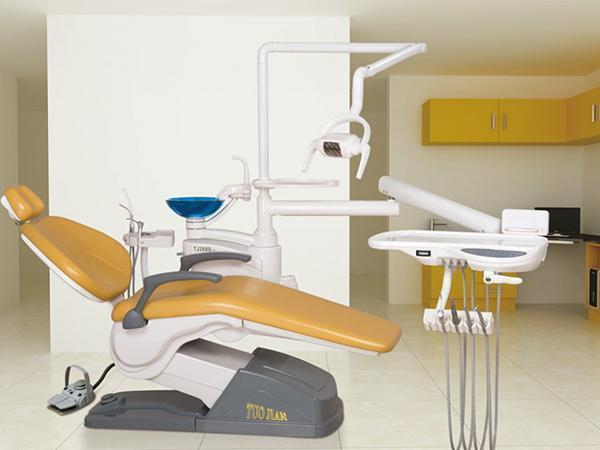

TJ2688C3 Dental Treatment Unit

Technical parameters
Voltage: 110v 60hz or 220v 50hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa

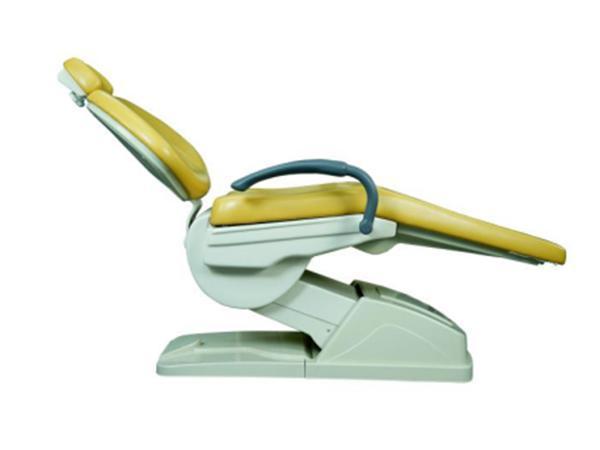

Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 136x112x93cm
Gross weight: 230kg
Net weight: 210kg

Standard configuration

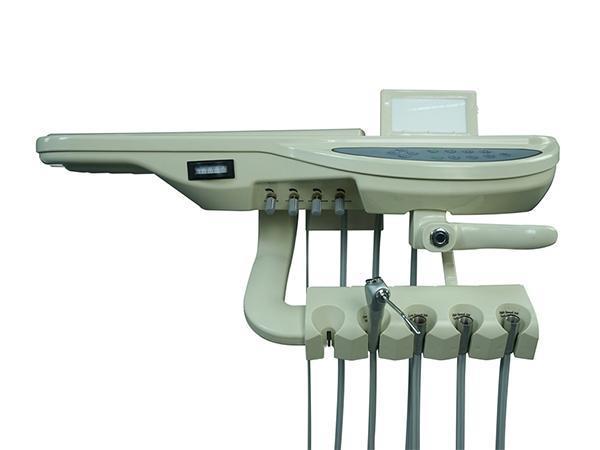

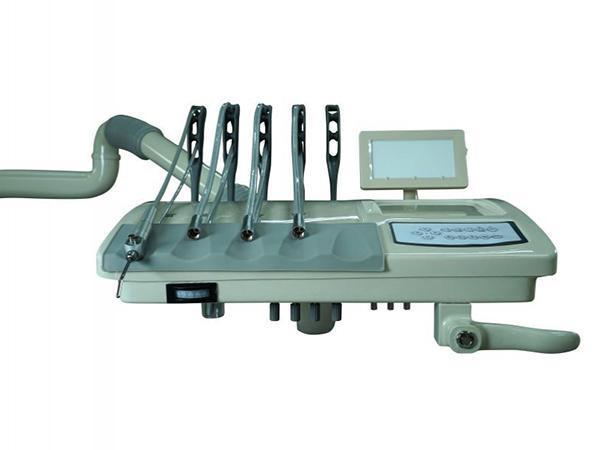

Top-mounted instrument tray
All the pipelines inside the instrument tray use acid and alkali resistant water pipes and air pipes, and the normal service life reaches up to 3 years.
Designed with five fixed instrument holders, it can satisfy various surgical use for the dentist.
The handpiece rack of the instrument tray is designed with a balanced sense, and its height and inclination fitting to place instruments, in order to make it easier for the dentist to change tools during dental surgery.
The instrument tray adopts 40×70mm size design, in order to make as much room as possible for the dentist to place surgical supplies and tools.

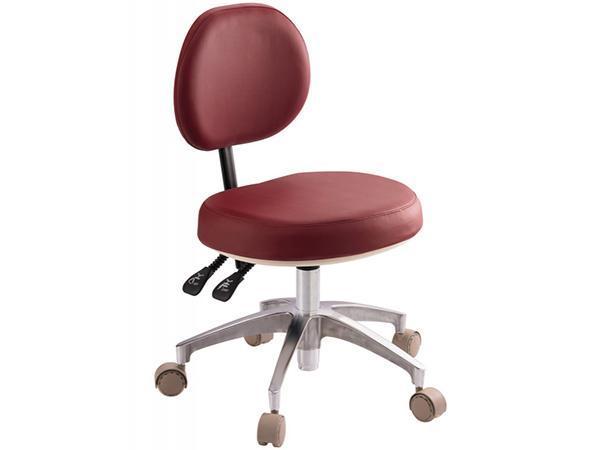

Chair for the dentist (1 set)
The surface of the chair is made of leather , in case of the dentist' sliding down during operation. The chair can rotate 360°, which is convenient for the dentist to get instruments or clean tools. With five stable casters and backrests, it can ensure the dentist maintain upright during the treatment.


Adjustable pillow
The adjustable pillow makes it easy for patients to move their head as they like.
Adopt ergonomic design so as to ensure patients stay comfortable in the treatment.


Automatic thermostatic water supply system
The system guarantees the patients a more comfortable experience and free from cold water stimulation.

Handpiece tubing with standard fittings (3 sets)
It is used to place the spare handpiece in the course of operation, preventing the handpiece arbitrarily placed on table from pollution.

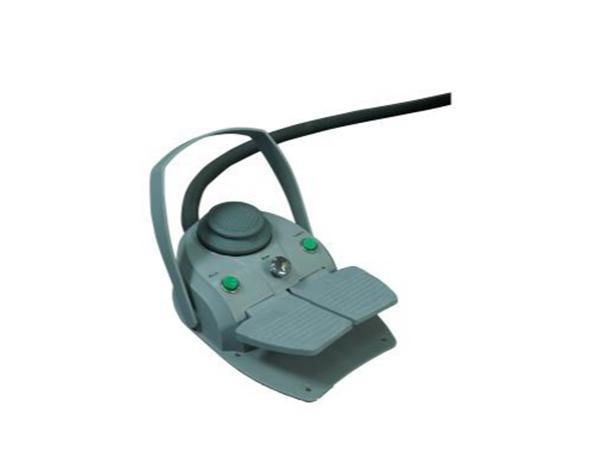

Multi-function foot switch (1 set)
The dentist is able to adjust the patient' chair through the foot switch with his hand not occupied, so that he can concentrate on the treatment.
The multi-function foot switch can not only control the lift of the chair and the position of backrest, but also the flush of the spittoon and the water outflow of the rinsing mug.
Furthermore, it is more hygienic to hinder the dentist from touching the button.


Three way syringe (one for hot water, one for cold water)
Detachable stainless steel nozzle with high temperature and high pressure disinfection is adopted in the three way syringe, and the water in it can also be filtered, in order to guarantee safety and non-pollution.

Water suction and saliva ejector
The strong and weak water suction and saliva ejector is used based on different conditions. It can get rid of the saliva produced by the patient in the treatment and make it convenient for later operation.
It is both light and portable, weighting less than 200g.

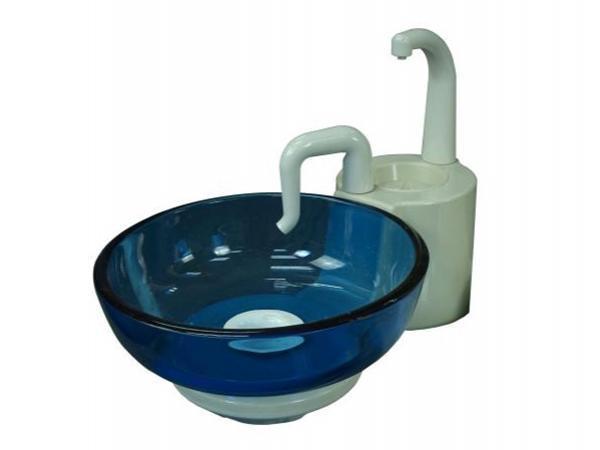

Glass spittoon
The spittoon made of glass material, has smooth surface and is easy to clean, which can be used to quickly remove blood and oil stains or disinfect.
The spittoon can rotate 180 degrees, easy for the patient to use directly in the chair without having to stand up, as well as convenient for the dentist to clean the instruments in time.


Built-in water purified system with bottle
High temperature sterilization, safe and sterile.

Strong and weak dual-purpose LED cold lamp
There are two levels of light, strong light and weak light, in order to adapt to different treatment environment.
The LED lamp produces less heat but has wide range of lighting, which can lighten the whole dental treatment unit.

Low-tension X-film viewer (1 set)
Voltage 24V, and the low-tension X-film viewer adopts energy-saving LED light source, leading to a long service life.

Optional configuration

Bottom-mounted instrument tray (1 set)
The dentist can choose either top-mounted or bottom-mounted instrument tray according to their own operating habits.

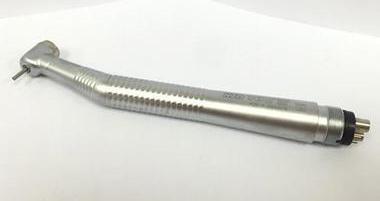

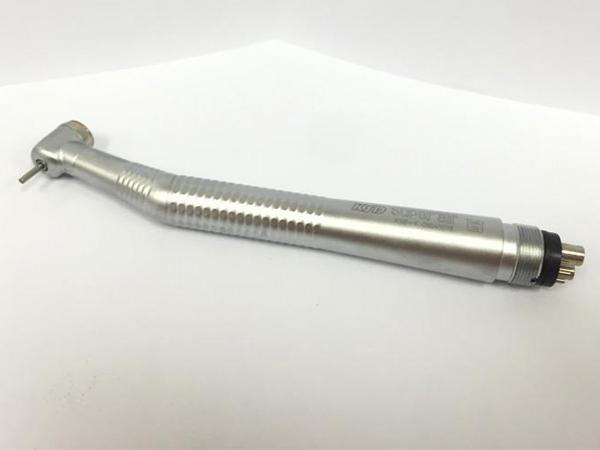

High-speed air driven handpieces (2 sets)
The handpiece is easy to grip since its body adopts humanized grip design, and the surface of which is corrosion resistant.
Stable operation, high-speed rotation without vibration.

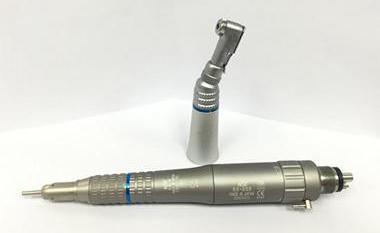

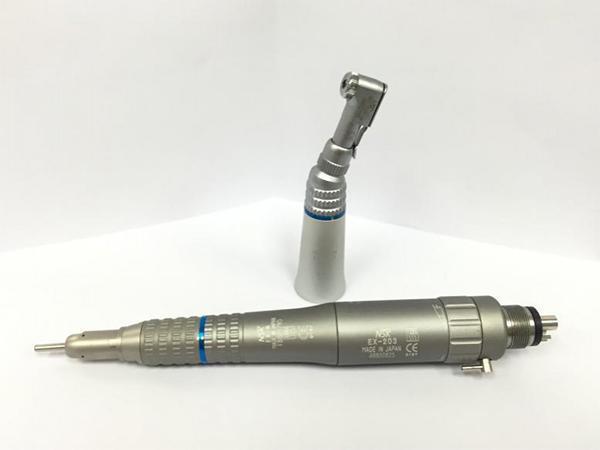

Low speed air motor handpiece (1 set)

Made of stainless steel, easy for cleaning and maintenance.


Fiber optic high speed turbine handpiece (2 sets)
The fiber optic high speed turbine handpiece is designed with water spray to reduce the high temperature produced in the course of treatment timely, to improve the work efficiency.
It is high temperature and high pressure resistant, deformation will not occur for that.
Stable body and low noise.

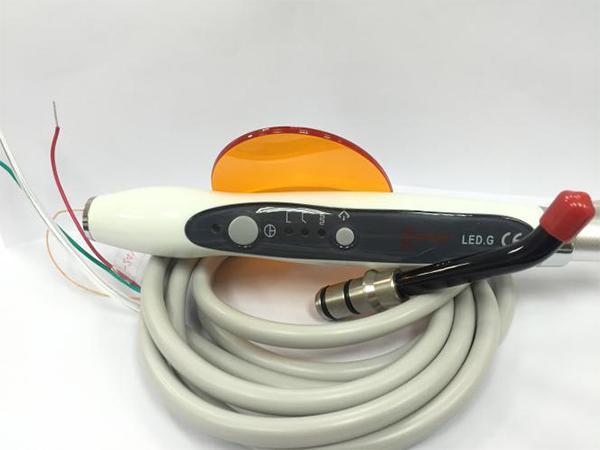

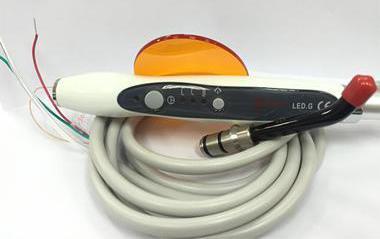

Built-in LED curing light (1 set)
The LED curing light is a dental device for repairing teeth, which can be used to fill the tooth cavity or bond the alveolus.


Built-in ultrasonic scaler (1 set)
The ultrasonic scaler can not only clear away plaque, tartar and stains and other dirt on the tooth surface to make teeth white, but also effectively prevent bad breath, root bleeding, periodontal disease and dental caries and other oral diseases from occurring. In addition, the built-in design makes sure the instrument will not be contaminated

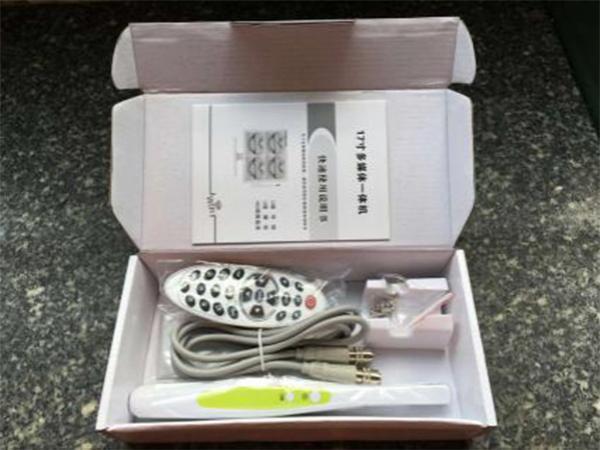

Endoscope equipment (1 set)
It is used to help the patients understand their own conditions and treatment effect, so that they can communicate with the dentist in time.


Dental vacuum pump (1 set)
The vacuum pump adopts aluminum alloy material to reduce its weight. Our company supplies dental vacuum pump that is suitable for one to eight dental chairs.
