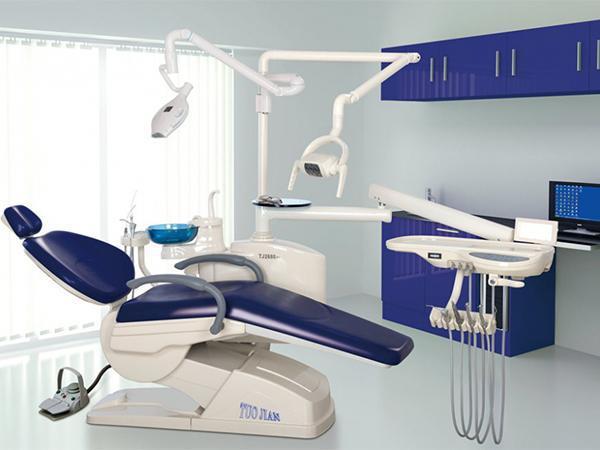

TJ2688E5 Dental Treatment Unit

Technical parameters
Voltage: 110v 60hz or 220v 50hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa
Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 146x112x105cm
Gross weight: 240kg
Net weight: 220kg

Standard configuration

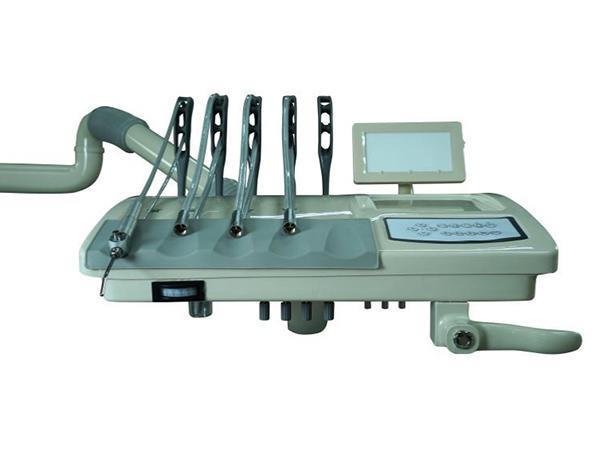

Top-mounted instrument tray(bottom-mounted instrument tray is optional)
All the pipelines inside the instrument tray adopt acid and alkali resistant water pipes and air pipes, and the normal service life of the instrument tray reaches up to 3 years.
With 5 fixed instrument holders, the instrument tray can satisfy various surgical needs of the dentist.
The handpiece rack of the instrument tray is designed with a balanced sense, height and inclination suitable for placing instruments, in order that the dentist can easily replace tools during dental surgery.
It adopts 40×70mm area design, in order to make as much room as possible for dentist to place surgical supplies and tools.

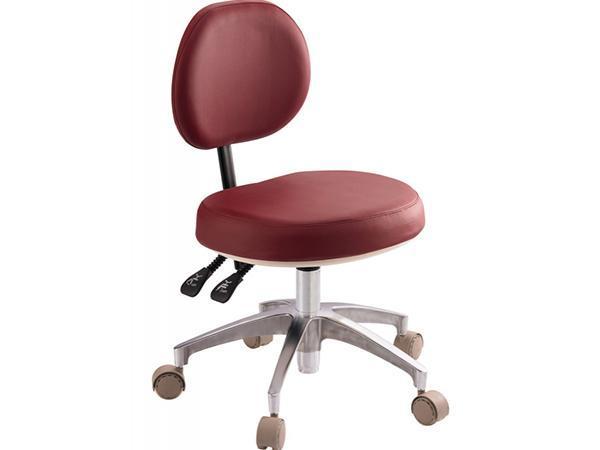

Chair for the dentist (1 set)
The surface of the dentist's chair is made of leather, which prevents the dentist from sliding down during operation. The chair can rotate 360°, convenient for the dentist to get instruments or clean tools. Equipped with five stable casters and backrests, it guarantees the dentist remains upright during the treatment.

Adjustable pillow
The adjustable pillow makes it possible for patients to move their head easily.
Ergonomic design is realized to ensure patients stay comfortable in the course of treatment.

Automatic thermostatic water supply system
The system guarantees the patients a more comfortable experience and free from cold water stimulation.

Handpiece tubing with standard fittings (3 sets)
It is used to place the spare handpiece during operation, in order to prevent the handpiece randomly put on table from contamination.

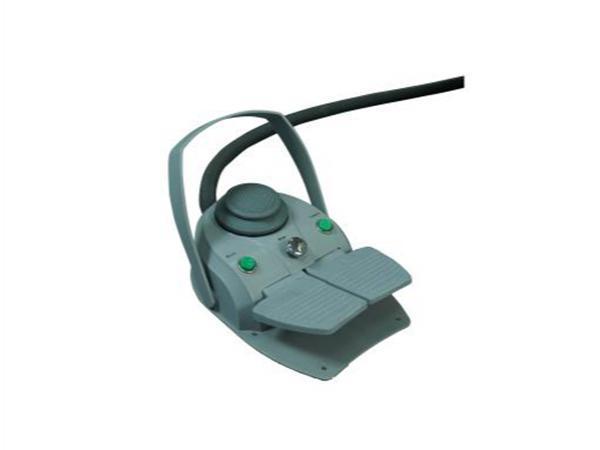

Multi-function foot switch (1 set)
The dentist can adjust the patient' chair by the foot switch, while his hand is free so that he can concentrate on the treatment.
The multi-function foot switch can not only control the lift of the chair and the position of backrest, but also the flush of the spittoon and the water outflow of the rinsing mug.
Besides, it is more hygienic to prevent the dentist from touching the button.

Three way syringe (one for hot water, one for cold water)
The three way syringe adopts detachable stainless steel nozzle with high temperature and high pressure disinfection, and the water in which can also be filtered to ensure safety and non-pollution.

Water suction and saliva ejector
The strong and weak water suction and saliva ejector will be used according to different conditions, in order to remove the saliva produced by the patient in the treatment and make it convenient for later operation.
Weighting less than 200g, lightweight and portable.

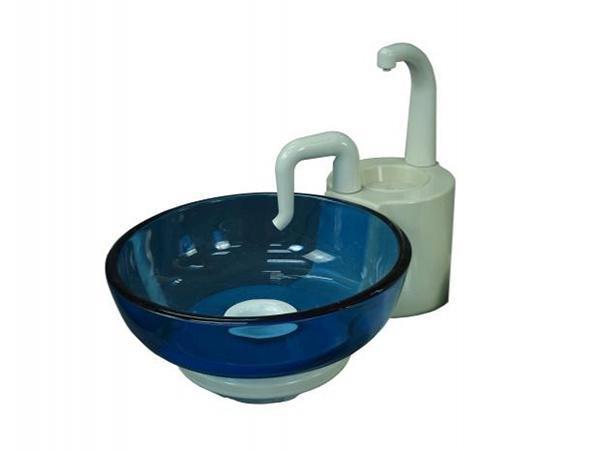

The spittoon made of glass material, has smooth surface and is easy to clean, in order to remove blood and oil stains as well as disinfect.
The spittoon can rotate 180°, to make it easy for the patient to use directly in the chair without having to get up, as well as for the dentist to clean the instruments in time.

Built-in water purified system with bottle
High temperature disinfection, safe and sterile.

Strong and weak dual-purpose LED cold lamp
The strong and weak dual-purpose LED cold lamp has two levels of lights to adapt to different treatment environment. The LED lamp generates less heat but has wide range of lighting that it can illuminate the whole dental equipment.

Low-tension X-film viewer (1 set)
The low-tension X-film viewer, adopting energy-saving LED light source and working at 24V, has a long service life.

Optional configuration

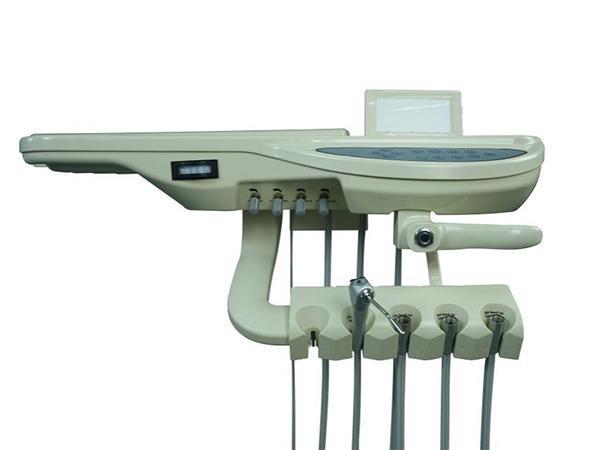

Bottom-mounted instrument tray (1 set)
The dentist can choose top-mounted or bottom-mounted instrument tray on their own operation habits.

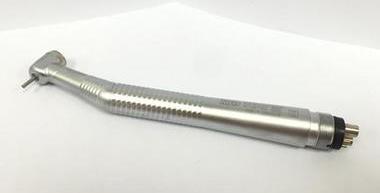

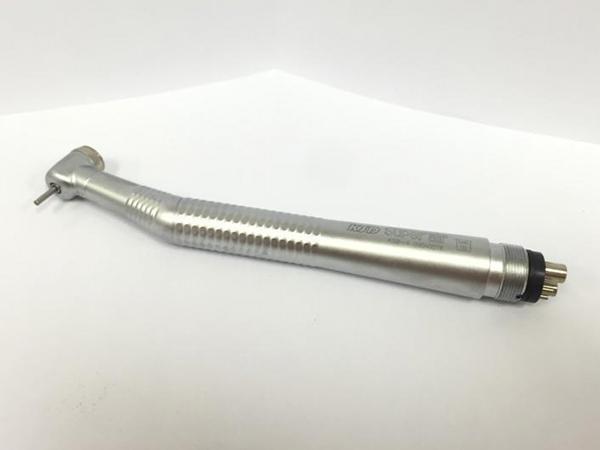

High-speed air driven handpieces (2 sets)
The handpiece is easy to hold since its body adopts humanized grip design, and its surface is corrosion resistant.
Stable operation, high-speed rotation without vibration.

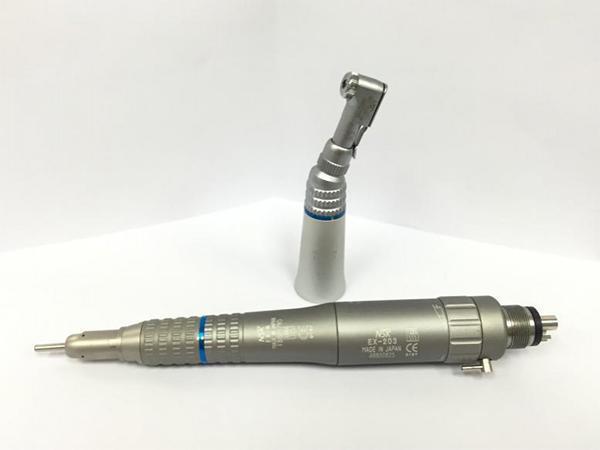

Low speed air motor handpiece (1 set)

Made of stainless steel, easy for cleaning and maintenance.

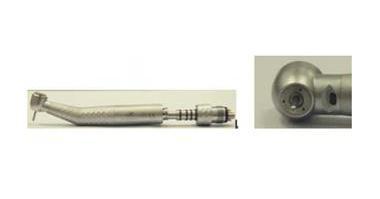

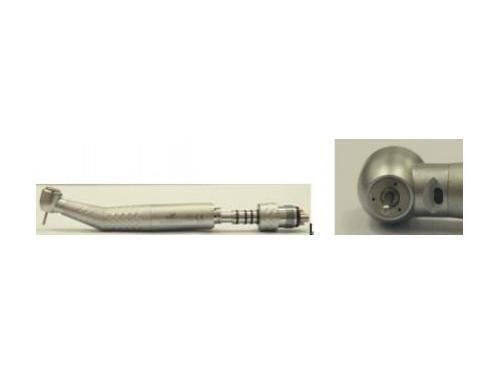

Fiber optic high speed turbine handpiece (2 sets)
The fiber optic high speed turbine handpiece is designed with water spray to reduce the high temperature generated in the course of treatment in time, which can improve the work efficiency.
With high temperature and high pressure resistance, high temperature or high pressure will not lead to its deformation easily.
Stable body and low noise.

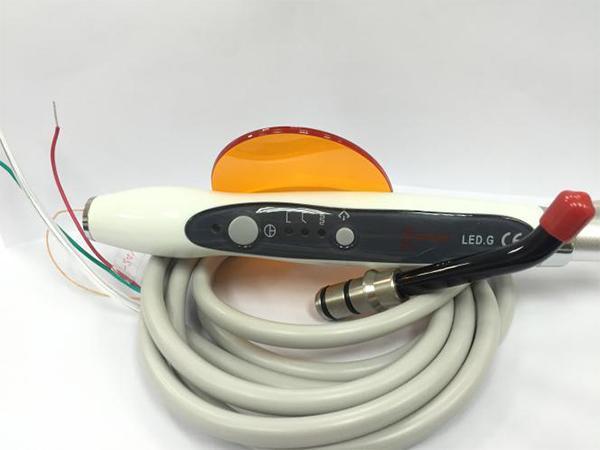

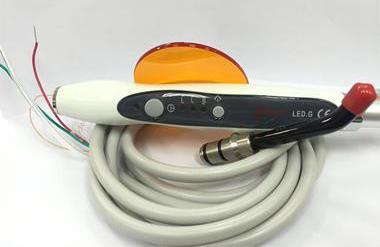

Built-in LED curing light (1 set)
The LED curing light is a dental device for repairing teeth, which can be applied to fill the tooth cavity or bond the alveolus.

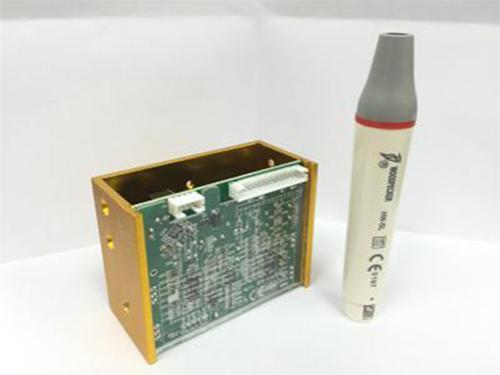

Built-in ultrasonic scaler (1 set)
The ultrasonic scaler can clear away such dirt as plaque, tartar and stains on the tooth surface to make teeth white, as well as effectively prevent such oral diseases as bad breath, root bleeding, periodontal disease and dental caries from occurring. In addition, the built-in design makes sure the instrument will not be contaminated.

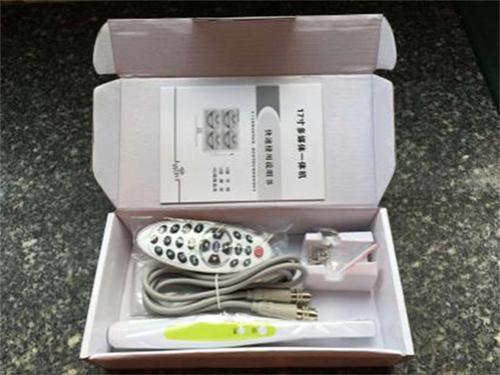

Endoscope equipment (1 set)
The endoscope equipment can help the patients understand their own conditions and treatment effects, convenient to communicate with the dentist.

Dental vacuum pump (1 set)
The vacuum pump made of aluminum alloy can reduce its weight. Our company provides the vacuum pump suitable for one to eight dental chairs.
