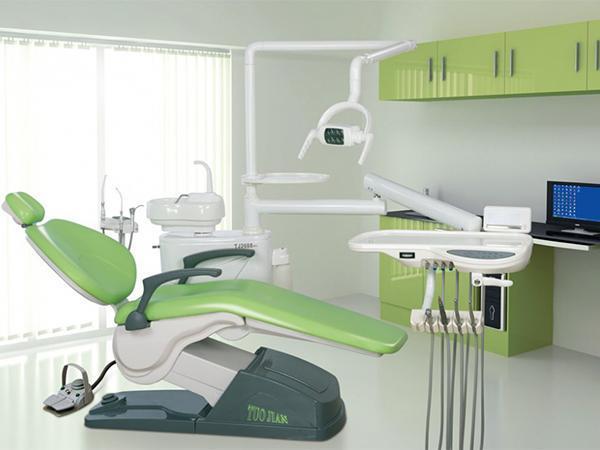

TJ2688B2 Dental Treatment Unit

Technical parameters
Voltage: 110v 60hz or 220v 50hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa
Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 136x112x93cm
Gross weight: 230kg
Net weight: 210kg

Standard configuration

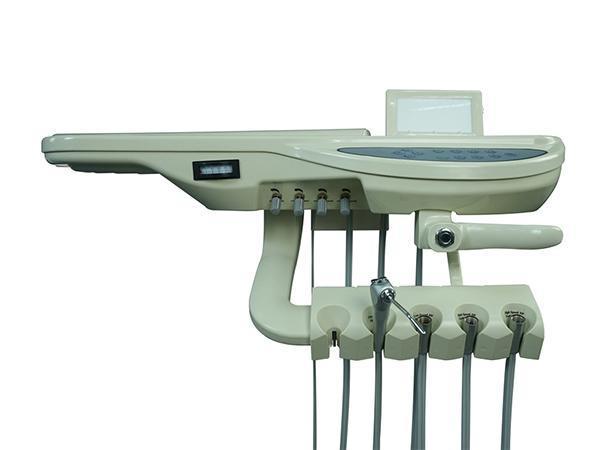

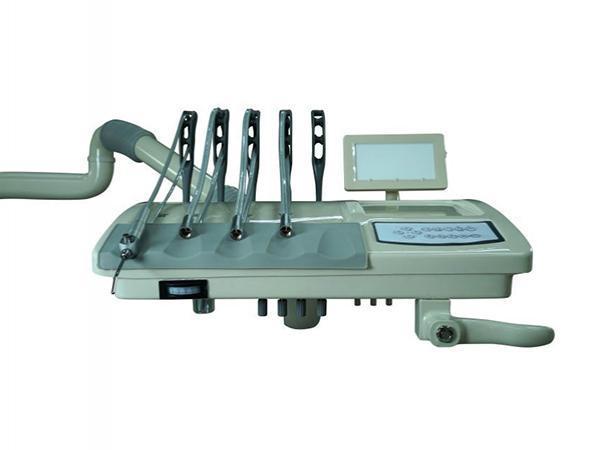

Top-mounted instrument tray(bottom-mounted instrument tray is optional)
All the pipelines inside the instrument tray use water pipes and air pipes with acid and alkali resistance, its normal service life is 3 years.
With 5 fixed instrument holders, the instrument tray can satisfy the dentist's various surgical needs.
The handpiece rack of the instrument tray is designed with a balanced sense, and its height and inclination is suitable for putting instruments, guaranteeing the dentist can conveniently change tools during dental surgery.
The instrument tray adopts 40×70mm size design, so as to maximize the space for dentist to put surgical supplies and tools.

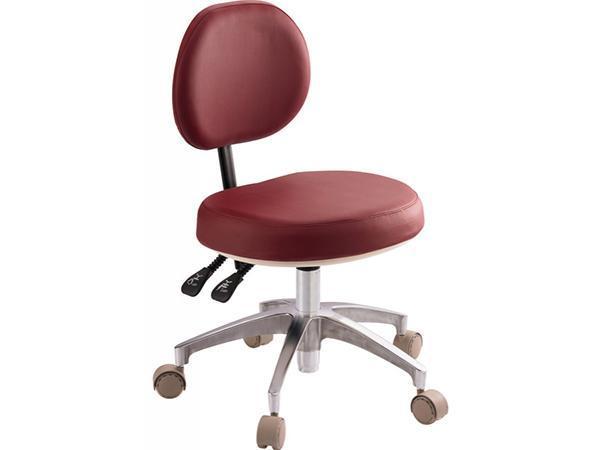

Chair for the dentist (1 set)
The surface of the dentist' chair is made of leather, which prevents the dentist from sliding down during operation.
It can rotate 360°, convenient to take instruments or clean tools. With 5 stable casters and backrests, it makes sure the dentist remain upright in the treatment.

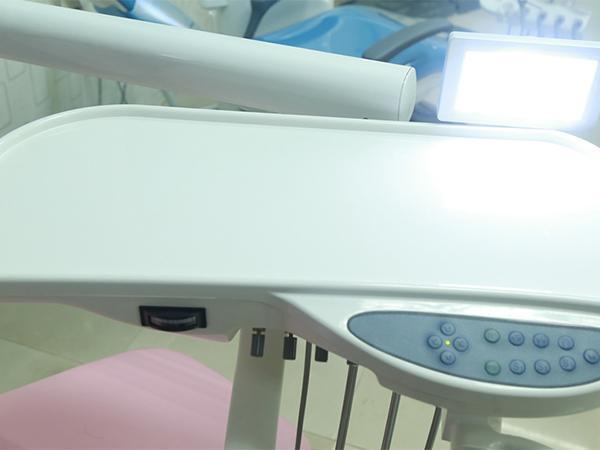

Simple key board
The board is designed, with all its keys raised.
Different keys have different simple patterns on them to identify its function.
Commonly used keys locate in conspicuous positions, convenient for the dentist to operate with.
With seat lift control button, backrest up-down control button, rinsing mug quantitative water button, spittoon water button as well as constant temperature heating water button, the key board makes it convenient for operation in the entire treatment.

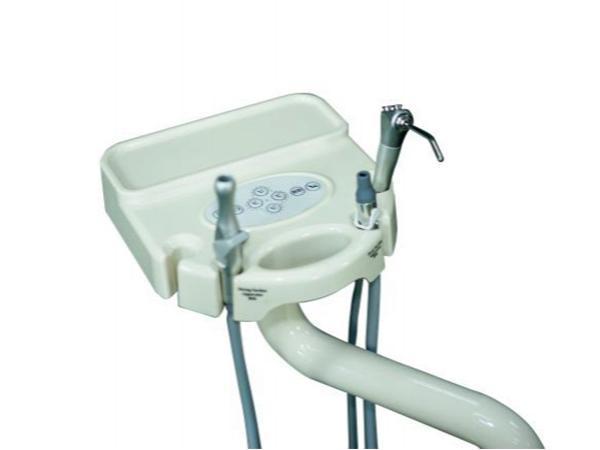

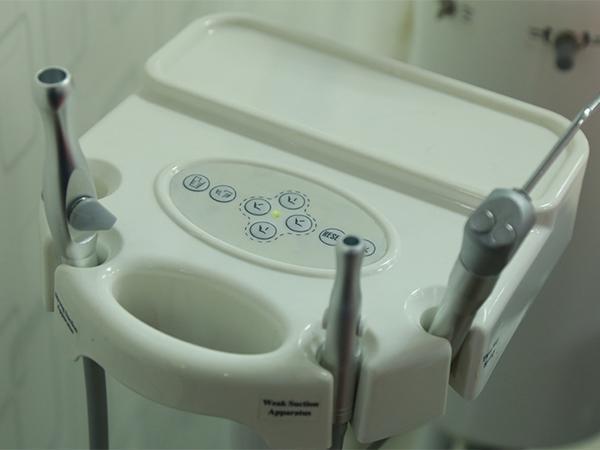

Multi-function assistant console
The console is designed with a raised outline, in case the instruments on it slide down.
There are simple chair control button board, chair lift control button, backrest up and down control button, spittoon flush button and rinsing mug water supply button on the console.
The rack of the assistant console is equipped with standard strong air water suction and saliva ejector , hydrodynamic water suction and saliva ejector, as well as three way syringe(can use hot water).

Adjustable pillow
The patients is able to move their head easily through the adjustable pillow.
Realize ergonomic design to ensure the patients keep comfortable in the course of treatment.

Automatic thermostatic water supply system
The system makes sure the patients have a more comfortable experience rather than cold water stimulation.

Handpiece tubing with standard fittings (3 sets)
It is for placing the spare handpiece during operation, in order to prevent the handpiece from being randomly put on table and contaminated.

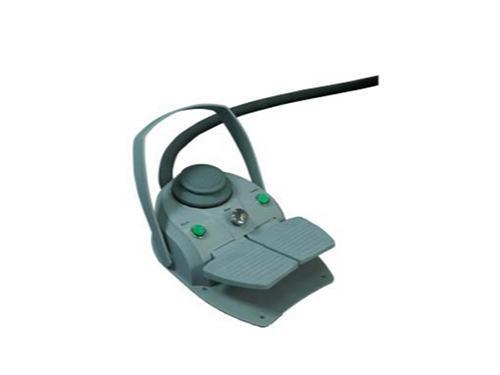

Multi-function foot switch (1 set)
The dentist can adjust the patient' chair by the foot switch, while his hand is free that he can concentrate on the treatment.
The multi-function foot switch can not only control the lift of the chair and the position of backrest, but also the flush of the spittoon and the water outflow of the rinsing mug.
In addition, it is more hygienic to prevent the dentist from touching the button.

Three way syringe (one for hot water, one for cold water)
The three way syringe adopts the detachable nozzle, which is made of stainless steel and sterilized by high temperature and high pressure disinfection. The water in it can also be filtered to guarantee safety and no pollution.

Water suction and saliva ejector
The strong and weak water suction and saliva ejector will be used depending on different conditions, in order to clear away the saliva produced by the patient in the treatment and make it convenient for later operation.
Less than 200g, light and portable.

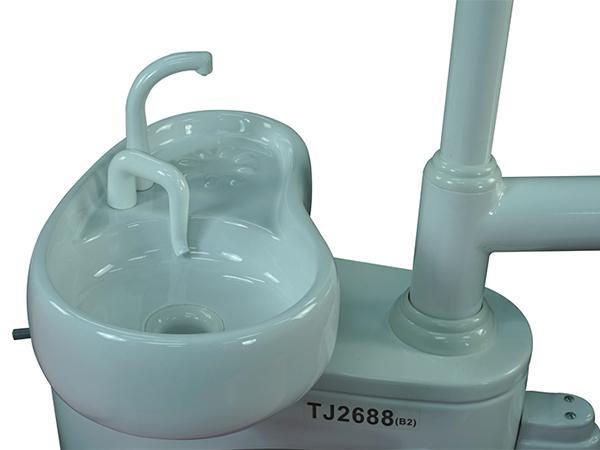

Ceramic spittoon
The ceramic spittoon has smooth surface and is easy to clean, which can quickly remove blood and oil stains as well as disinfect.
The spittoon can rotate 180°, making it convenient for the patients to use directly in the chair while they do not have to stand up, as well as for the dentist to clean the instruments in time.

Built-in water purified system with bottle
High temperature disinfection, safe and sterile.

Strong and weak dual-purpose LED cold lamp (1 set)
The strong and weak dual-purpose LED cold lamp has two levels of lights to fit to different treatment environment.
The LED lamp generates less heat but has wide range of lighting so as to illuminate the whole dental treatment unit.

Low-tension X-film viewer (1 set)
The 24V low-tension X-film viewer adopts energy-saving LED light source so as to have a long service life.

Optional configuration

Bottom-mounted instrument tray (1 set)
The dentist may choose either top-mounted or bottom-mounted instrument tray according to their own operating habits.

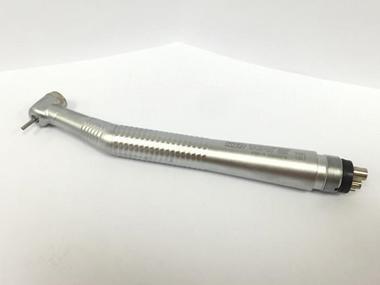

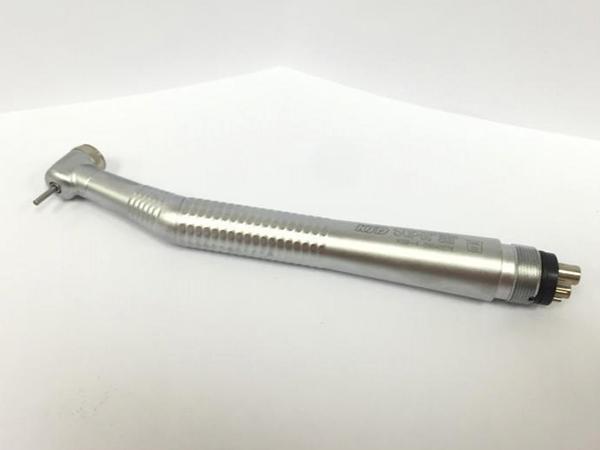

High-speed air driven handpieces (2 sets)
The high-speed air driven handpiece is easy to grip as its body design with humanized grip consideration, and its surface is corrosion resistant.
Stable operation, high-speed rotation without vibration.

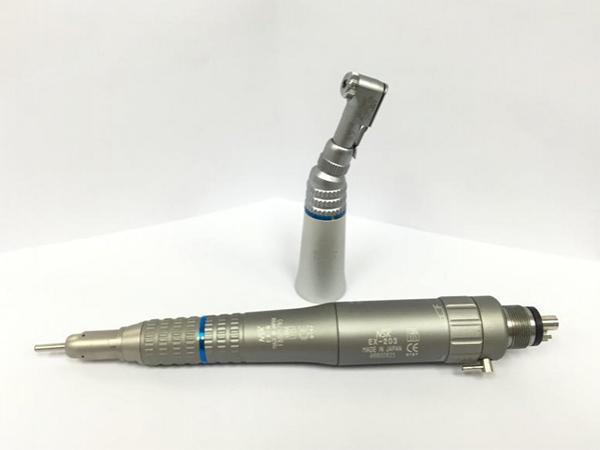

Low speed air motor handpiece (1 set)

Made of stainless steel, easy for cleaning and maintenance.

Fiber optic high speed turbine handpiece (2 sets)
The fiber optic high speed turbine handpiece is designed with water spray to lower the high temperature generated in the treatment process and cool in time, so that work efficiency could be improved a lot.
With high temperature and high pressure resistance, so high temperature or high pressure will not lead to its deformation.

Stable body and low noise.

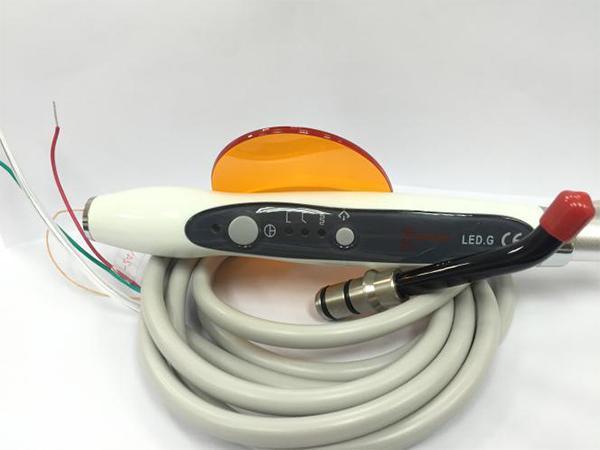

Built-in LED curing light (1 set)
The LED curing light belongs to dental equipment for repairing teeth, which is commonly used to fill the tooth cavity or bond the alveolus.

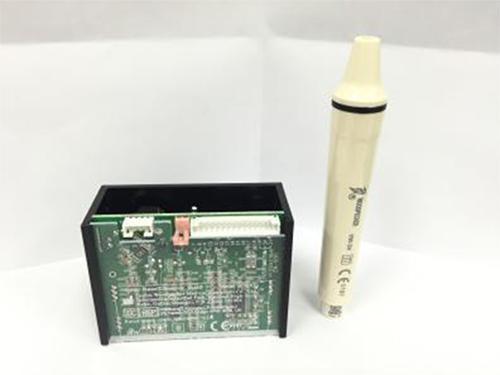

Built-in ultrasonic scaler (1 set)
The ultrasonic scaler can remove such dirt as plaque, tartar and stains on the tooth surface to make teeth white, as well as effectively prevent such oral diseases as bad breath, root bleeding, periodontal disease and dental caries from occurring. In addition, the built-in design ensures the instrument will not be contaminated.

Endoscope equipment (1 set)
The endoscope equipment is used to help the patients understand their own conditions and treatment effect, convenient for them to communicate with the dentist.

Dental vacuum pump (1 set)
The dental vacuum pump adopts aluminum alloy material to reduce its weight. Our company offers dental vacuum pump suitable for one to eight dental chairs.
