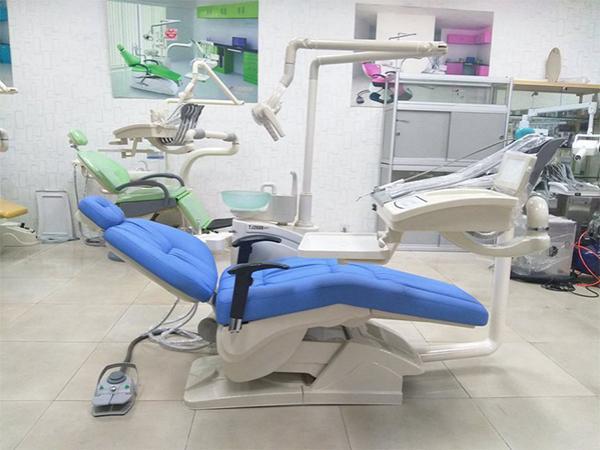

TJ2688G7 Dental Treatment Unit

Technical parameters
Voltage: 110v 60hz or 220v 50hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa
Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 146x99x105cm
Gross weight: 380kg
Net weight: 360kg

Standard configuration

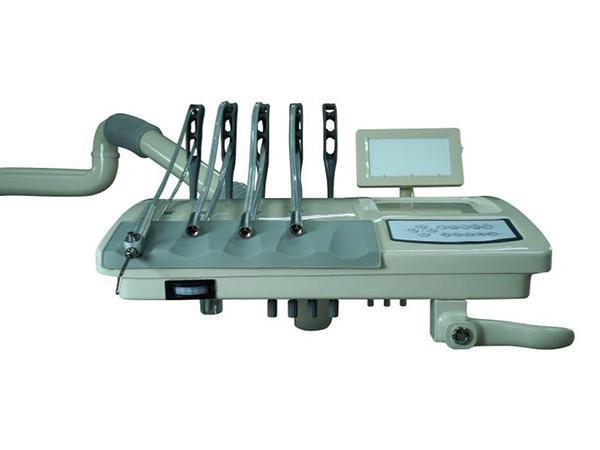

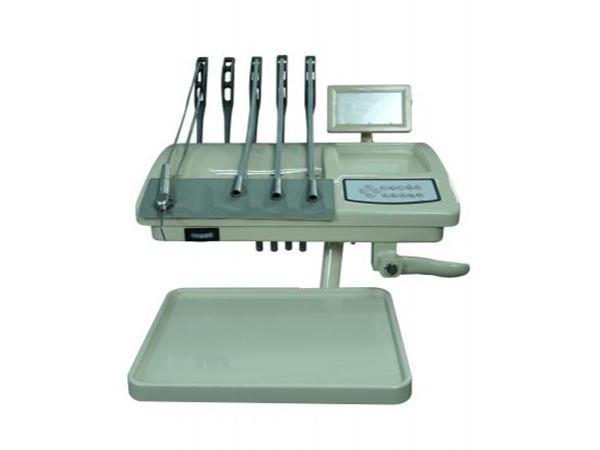

Top-mounted instrument tray
Inside the instrument tray, all the pipelines adopt water pipes and air pipes with acid and alkali resistance, and its normal service life is three years.
With five fixed instrument holders, it can satisfy various surgical needs of the dentist.
The handpiece rack of the instrument tray is designed with a sense of balance, height and inclination suiting to place instruments, in order that the dentist can conveniently replace tools during dental surgery.
The instrument tray is designed with 40×70mm area, in order to facilitate the dentist to place surgical supplies and tools.


Multi-function assistant console
There are simple chair control button board, chair lift control button, backrest up and down control button, spittoon flush button and rinsing mug water supply button on the console.
The rack of the assistant console is equipped with standard strong air water suction and saliva ejector , hydrodynamic water suction and saliva ejector, as well as three way syringe(can use hot water).
The console can be suitable for dentists who are accustomed to operating with the left hand, as well as dentists who are accustomed to operating with the right hand.

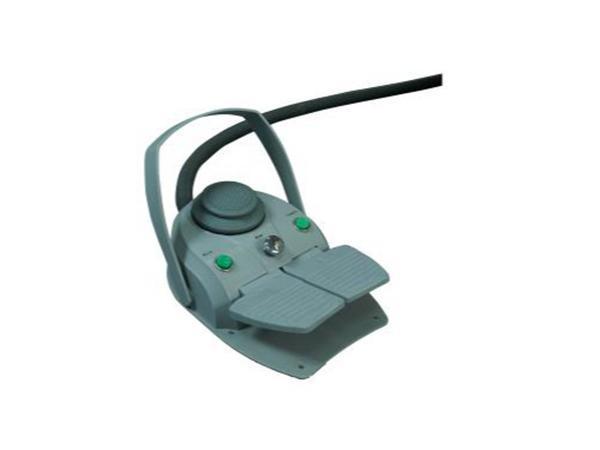

Multi-function foot switch (1 set)
The dentist can adjust the patient' chair through the foot switch with his hand not occupied, so that he can concentrate on the treatment.
The multi-function foot switch can not only control the lift of the chair and the position of backrest, but also the flush of the spittoon and the water outflow of the rinsing mug.
Furthermore, it is more hygienic to prevent the dentist from touching the button.


Three way syringe (one for hot water, one for cold water)
The three way syringe adopts stainless steel detachable nozzle with high temperature and high pressure disinfection. Moreover, the water in it can be filtered to ensure safety and no pollution.

Water suction and saliva ejector
The strong and weak water suction and saliva ejector will be used according to different conditions to eliminate the saliva produced by the patient in the treatment and make it convenient for later operation.
Lightweight and portable, less than 200g.

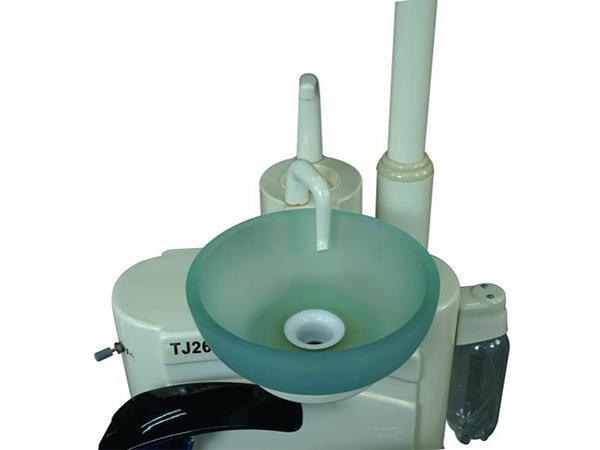

Glass spittoon
The spittoon made of glass material, with smooth surface and easy to clean, is used to remove blood and oil stains or disinfect.
The spittoon can rotate 180°, making it easy both for the patient to use it directly in the chair, and for the dentist to clean the instruments in time.

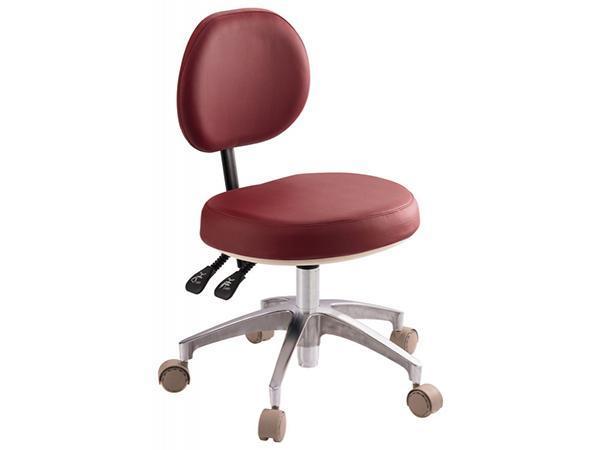

Chair for the dentist (1 set)
The surface material of the chair is leather , in case the dentist slides down during operation. It can rotate 360°, easy to get instruments or clean tools. Equipped with five stable casters and backrests , it ensures the dentist keep upright in the treatment.


Adjustable pillow
The adjustable pillow makes it convenient for patients to move their head.
Realize ergonomic design so as to ensue patients keep comfortable in the course of treatment.

Automatic thermostatic water supply system
The system guarantees the patients have more comfortable treatment and get freed from cold water stimulation.

Handpiece tubing with standard fittings (3 sets)
It is used to place the spare handpiece during operation, in order to prevent the handpiece from being arbitrarily placed on table and polluted.

Built-in water purified system with bottle
High temperature disinfection, safe and sterile.

Strong and weak dual-purpose LED cold lamp
The strong and weak dual-purpose LED cold lamp has two levels of lights to fit to different treatment environment.
The LED lamp generates less heat, and it has wide range of lighting so as to illuminate the whole dental treatment unit.

Low-tension X-film viewer (1 set)
The viewer works at 24V and adopts energy-saving LED light source. It achieves the purpose of a long service life.

Optional configuration

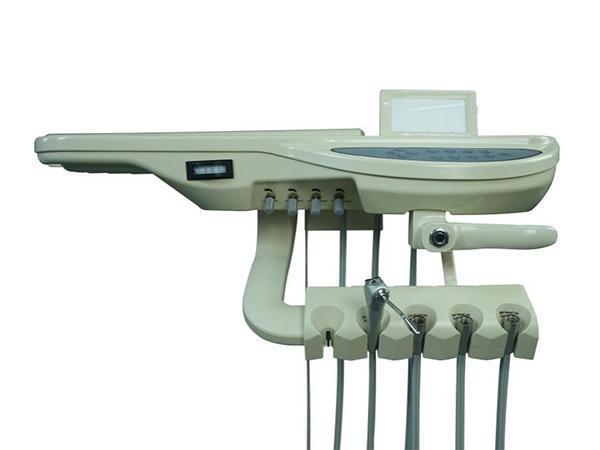

Bottom-mounted instrument tray (1 set)
The dentist can choose either top-mounted or bottom-mounted instrument tray according to their own operation habits.

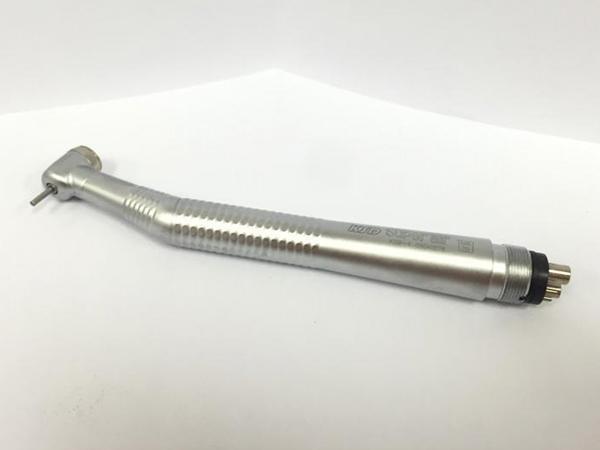

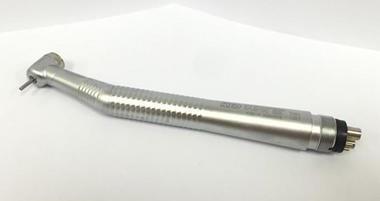

High-speed air driven handpieces (2 sets)
It is easy to hold for its body adopts humanized grip design. Besides, its surface has excellent corrosion resistance.
Stable operation, high-speed rotation without vibration.

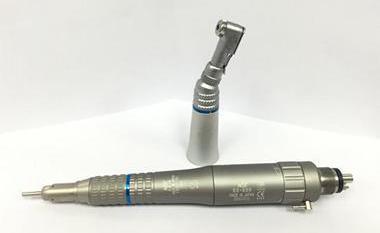

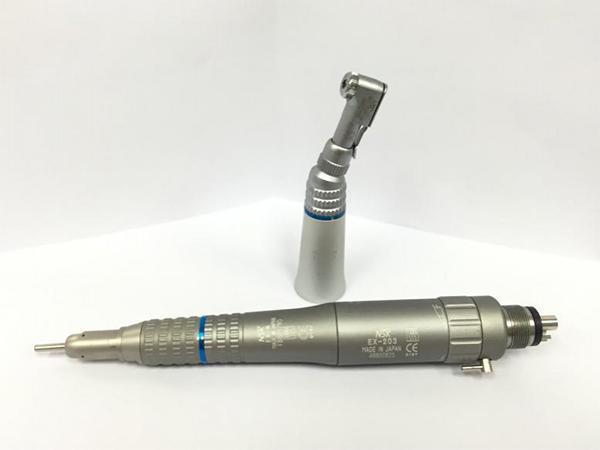

Low speed air motor handpiece (1 set)
Made of stainless steel, it is easy to clean and maintain.

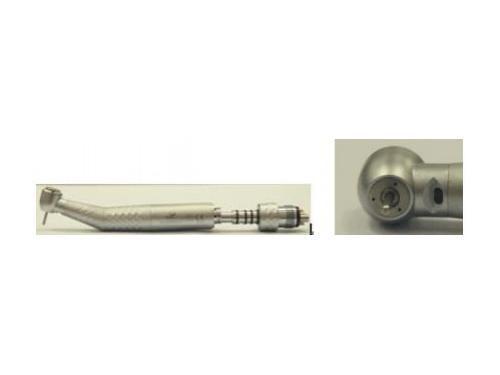

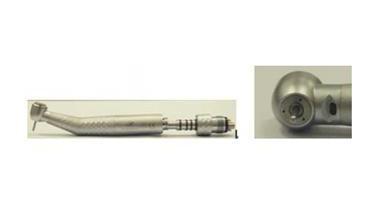

Fiber optic high speed turbine handpiece (2 sets)
The handpiece is designed with water spray in order to lower the high temperature generated in the course of treatment timely, which can enhance the work efficiency.
It has high temperature and high pressure resistance, so they will not lead to its deformation.
Stable body and low noise.


Built-in LED curing light (1 set)
The LED curing light is a kind of dental equipment for repairing teeth, which can be used to fill the tooth cavity or bond the alveolus.

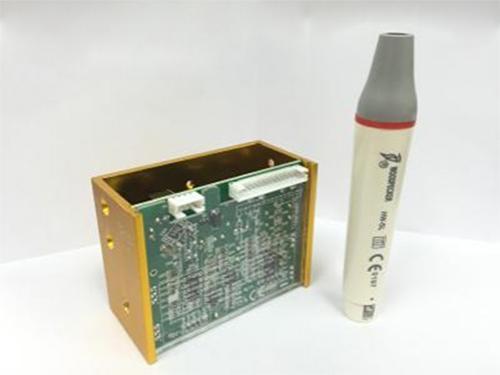

Built-in ultrasonic scaler (1 set)
The ultrasonic scaler not only can clear away such dirt as plaque, tartar and stains on the tooth surface to make teeth white, but also can effectively prevent such oral diseases as bad breath, root bleeding, periodontal disease and dental caries from occurring. Besides, the built-in design ensures the instrument will not be polluted.

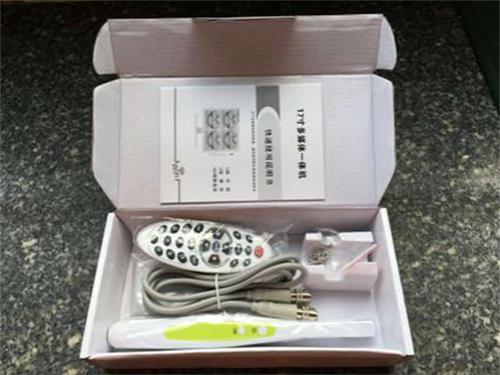

Endoscope equipment (1 set)
The endoscope equipment is used to can help the patients understand their own conditions and treatment effects, beneficial for them to communicate with the dentist.


Dental vacuum pump (1 set)
The vacuum pump adopts aluminum alloy material in order to reduce its weight. Our company supplies the vacuum pump that can be used for one to eight dental chairs.
