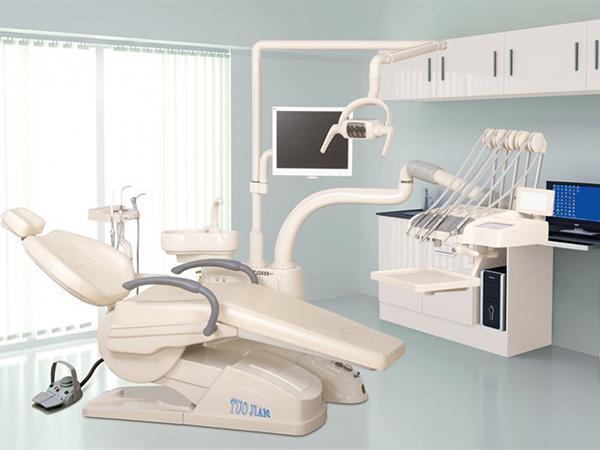

TJ2688D4 Dental Treatment Unit

Technical parameters
Voltage: 110v 60hz or 220v 50hz
Air pressure: >0.55mpa
Water pressure: 0.2mpa-0.4mpa
Lowest position of chair: 440mm
Highest position of chair: 860mm
Minimum angel of backrest: 5°
Maximum angel of backrest: 85°
Packing size: 146x112x105cm
Gross weight: 240kg
Net weight: 220kg

Standard configuration

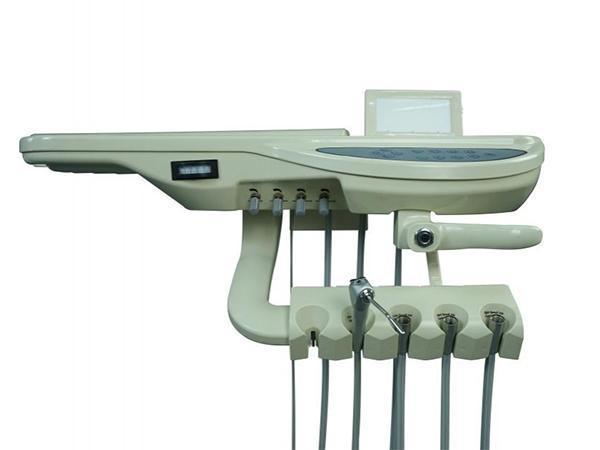

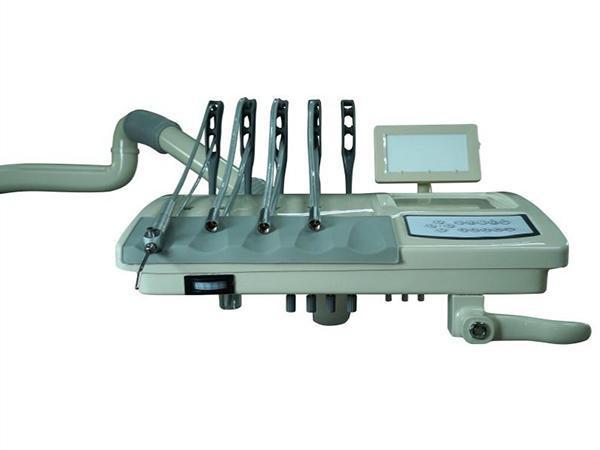

Top-mounted instrument tray(bottom-mounted instrument tray is optional)
Inside the instrument tray, all the pipelines use acid and alkali resistant water pipes and air pipes, and the normal service life reaches up to 3 years.
With 5 fixed instrument holders, it can meet various surgical needs for dentists.
Its handpiece rack designed with a balanced sense, height and inclination fitting to set instruments, makes it convenient for the dentist to replace tools during dental surgery.
The instrument tray designed with the area of 40×70mm, maximizes the room for dentists to put surgical supplies and tools.

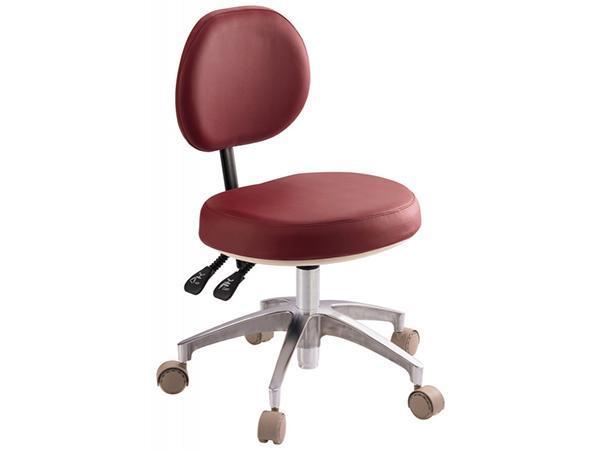

Chair for the dentist (1 set)
The surface adopts leather material, in case the dentist slides down during operation. The chair can rotate 360 degrees, convenient for getting instruments or cleaning tools. Equipped with five stable casters and backrests , the chair can ensure the dentist keep upright during the treatment.

Adjustable pillow
The pillow allows the patients to adjust their head easily.
Realize ergonomic design so as to guarantee the patients stay comfortable during the treatment.

Automatic thermostatic water supply system
The automatic thermostatic water supply system guarantees the patients get more comfortable treatment rather than stimulated by cold water.

Handpiece tubing with standard fittings (3 sets)
It is used to place unused handpiece during operation, in order to prevent the handpiece arbitrarily placed on table from contamination.

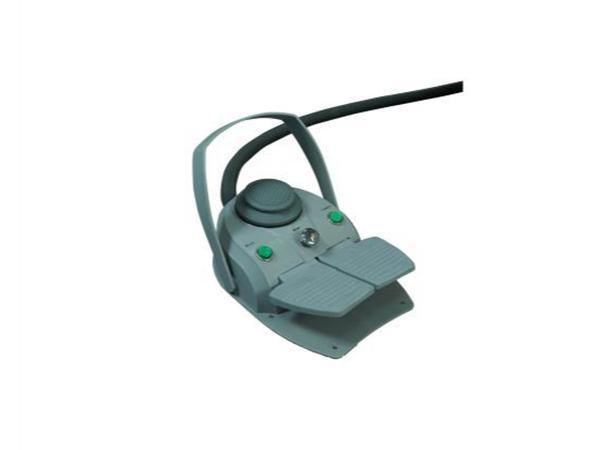

Multi-function foot switch (1 set)
The dentist can adjust the patient' chair by the multi-function foot switch, while his hand is free that he can focus on the treatment.
It can not only control the lift of the chair and the position of backrest, but also the flush of the spittoon and the water outflow of the rinsing mug.
Besides, it is more hygienic to prevent the dentist from touching the button.

Three way syringe (one for hot water, one for cold water)
The three way syringe adopts detachable stainless steel nozzle, which is disinfected with high temperature and high pressure. The water in the syringe can also be filtered in order to guarantee safety and no pollution.

Water suction and saliva ejector
The strong and weak water suction and saliva ejector will be used according to different conditions, which can clean the saliva produced by the patient during the treatment to make it convenient for later operation.
Weighting less than 200g, it is lightweight and portable.

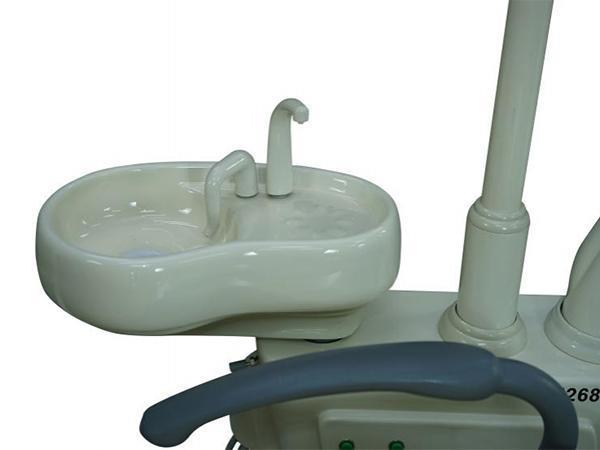

The spittoon made of ceramic material, with smooth surface and easy to clean, can quickly remove blood and oil stains as well as disinfect.

The spittoon can rotate 180 degrees, both easy for the patient to use directly in the chair without having to sit up, and for the dentist to clean the instruments in time.

Built-in water purified system with bottle
High temperature disinfection, safe and sterile.

Strong and weak dual-purpose LED cold lamp
The machine has two levels of lights, strong light and weak light, to be used in different treatment environment, the LED lamp on which produces less heat and has wide range of lighting. The whole dental treatment unit could be illuminated.

Low-tension X-film viewer (1 set)
The low-tension X-film viewer adopts energy-saving LED light source and works at the voltage of 24V. It has a long service life.

Optional configuration

Bottom-mounted instrument tray (1 set)
The dentist can choose top-mounted or bottom-mounted instrument tray to operate with according to their own operating habits.

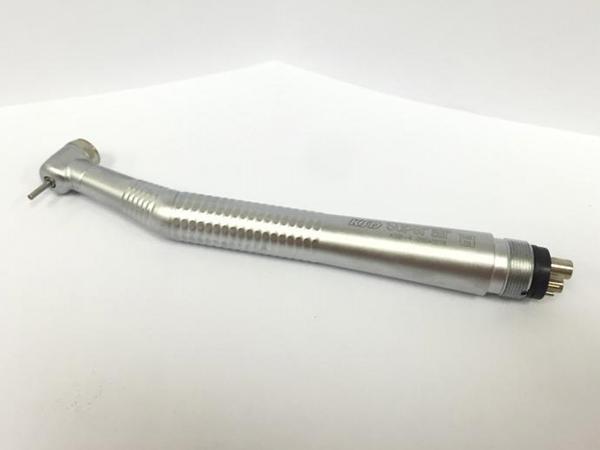

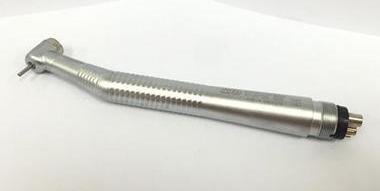

High-speed air driven handpieces (2 sets)
Adopting humanized grip design, the handpiece is easy to hold, and its surface is with corrosion resistance.
Stable operation, high-speed rotation without vibration.

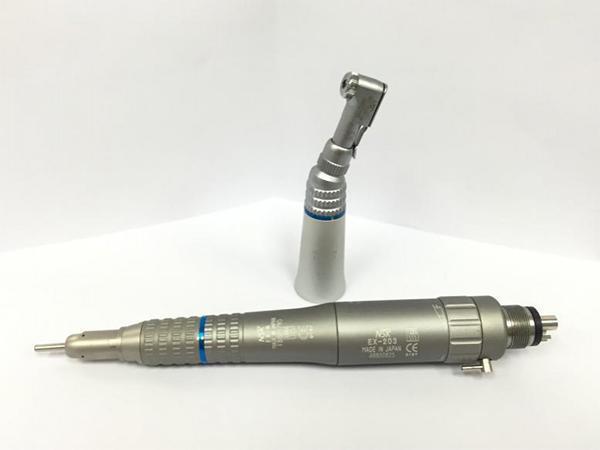

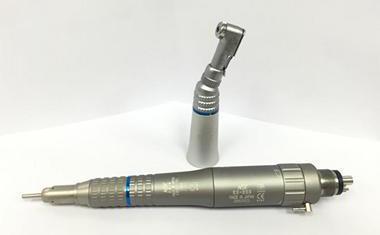

Low speed air motor handpiece (1 set)

Made of stainless steel, easy for cleaning and maintenance.

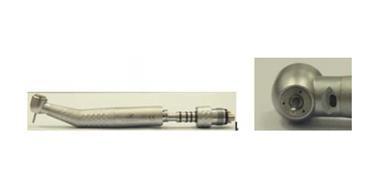

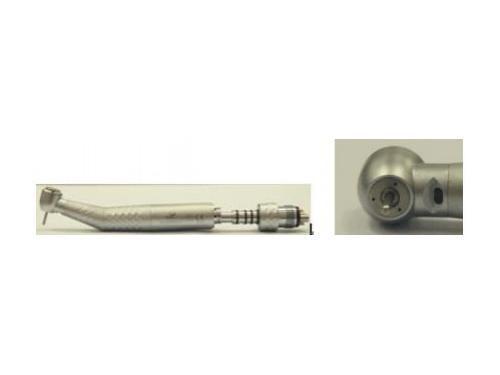

Fiber optic high speed turbine handpiece (2 sets)
The fiber optic high speed turbine handpiece is designed with water spray to reduce the high temperature generated in the treatment in time, thus improving the work efficiency.
With high temperature and high pressure resistance, it will not be deformed easily..
Stable body and low noise.

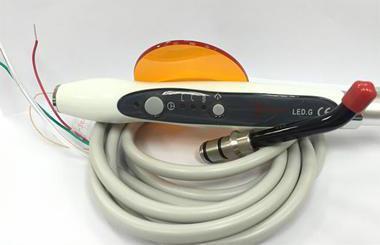

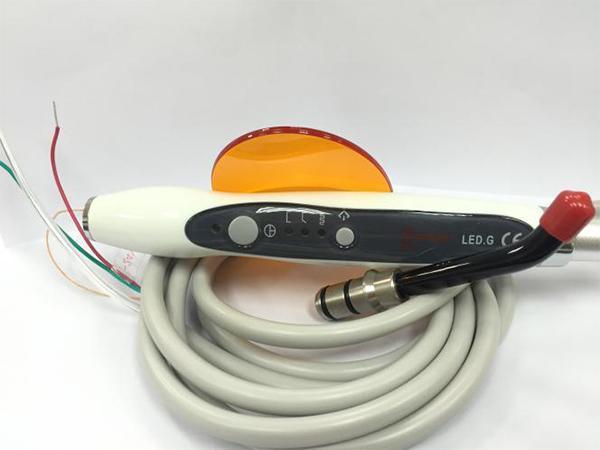

Built-in LED curing light (1 set)
The LED curing light is a dental device for repairing teeth, which can be used to fill the tooth cavity or bond the alveolus.

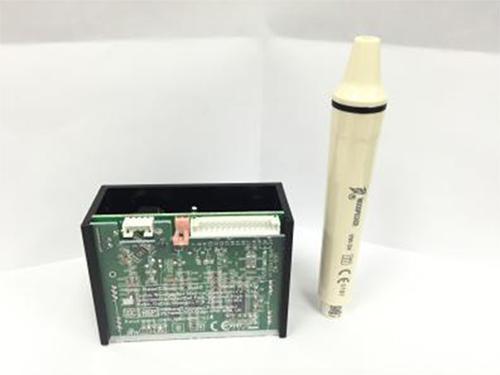

Built-in ultrasonic scaler (1 set)
The ultrasonic scaler can not only clear away such dirt as plaque, tartar and stains on the tooth surface to make teeth white, but also effectively prevent such oral diseases as bad breath, root bleeding, periodontal disease and dental caries. In addition, the built-in design ensures the instrument will not be polluted.

Endoscope equipment (1 set)
The equipment is used to help the patients understand their own conditions and treatment effects, convenient for them to communicate with the dentist.

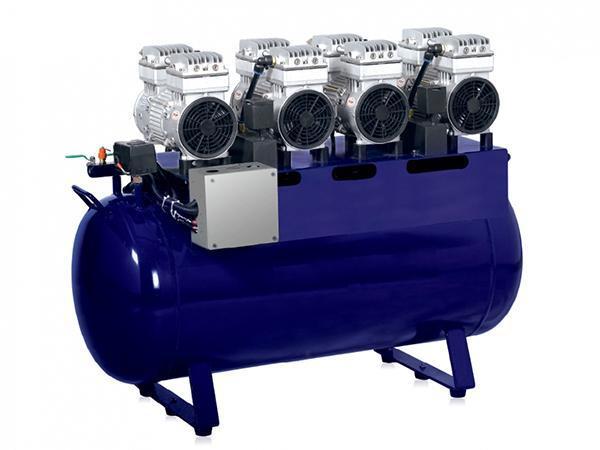

Dental vacuum pump (1 set)
The vacuum pump is made of aluminum alloy to reduce its weight. We offer the vacuum pump suitable for one to eight dental chairs.
